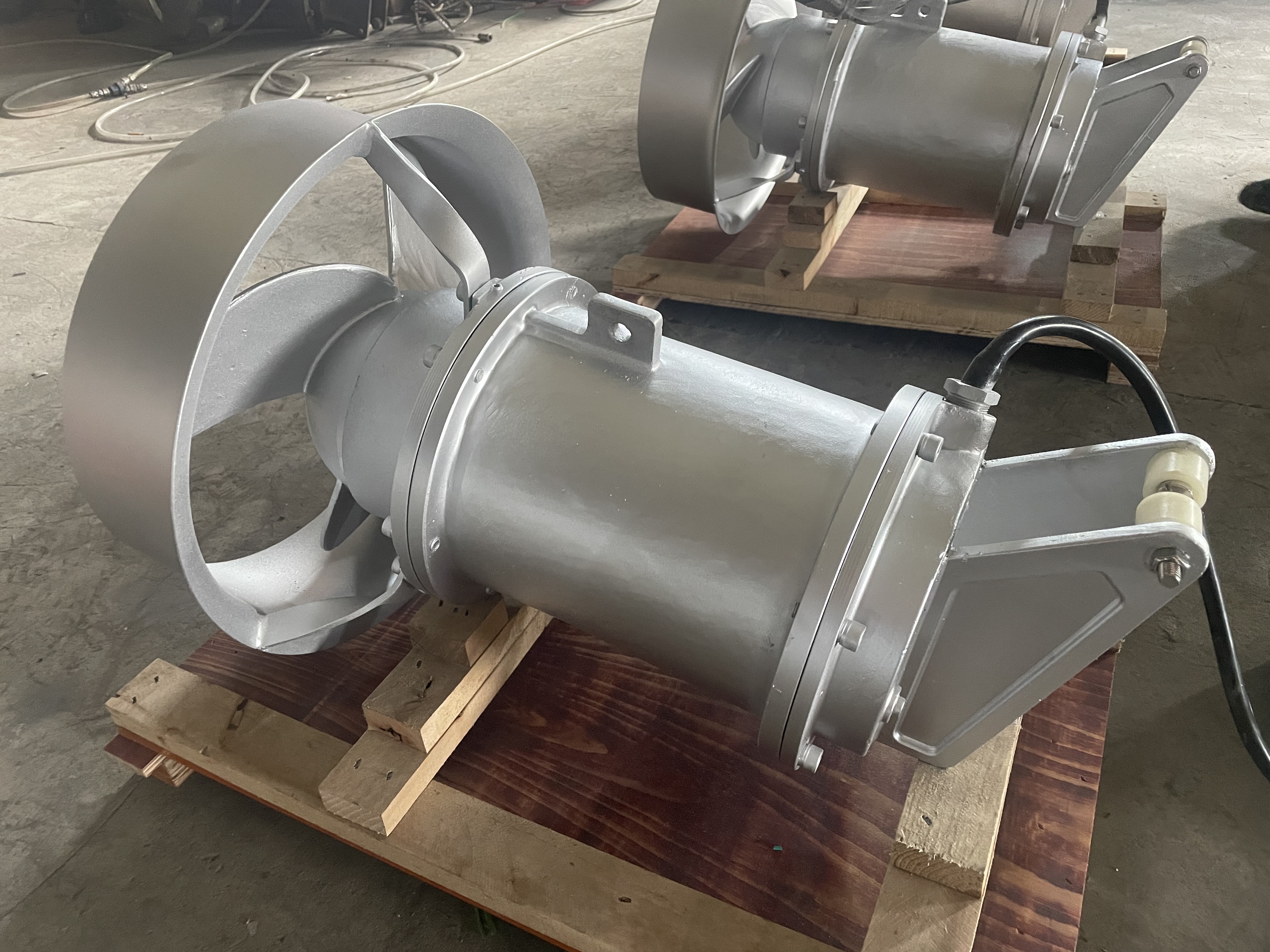

Submersible cutter Mixer Pump
also known as submersible propeller, is suitable for the process of sewage treatment plant to promote the mixing of wastewater containing suspended solids, thin mud, industrial process liquid, etc., to create water flow, strengthen the mixing function, prevent sludge precipitation, municipal and industrial wastewater treatment process is an important equipment.It is divided into mixed submersible mixer, low speed submersible propulsion mixer.
Mixing and stirring series is suitable for municipal and industrial sewage treatment process to stir the liquid containing suspended matter, generally use multi-stage electrode, using direct connection structure, low energy consumption, high efficiency. Mixing mixer impeller through precision casting or stamping molding, high precision, thrust, compact structure.
Technical Parameters:
| Attribute | Value |
| Product Name | Submersible cutter Mixer Pump |
| model | QJB3/8- 400/3-740/C |
| Cable Length | 10m |
| Insulation Class | F |
| Warranty | 1 Year |
| Protection Grade | IP68 |
| Material | Cast Iron |
| Application | Industrial |
| Power Source | Electric |
Submersible cutter Mixer Pump
is suitable for all kinds of water treatment processes and industrial processes, which need to keep the solid-liquid two-phase or solid-liquid-gas three-phase medium uniform mixing reaction place.
QJB mixer can operate normally and continuously under the following conditions:
1.The temperature of high medium should not exceed 40 ° C;
2.The pH value of the medium is between 5 - 9;
3. The medium density shall not exceed 115KG / m3;
4. long term diving operation, the diving depth is generally not more than 20 meters.
